How to Use Google Drive Uploader Field With Gravity Forms?

This feature allows you and your users to upload your files directly to Google Drive from your Gravity Forms upload field.


Step-1: Installing Integrate Google Drive Plugin

Go to WordPress Plugins > Add New > Search Integrate Google Drive > Install & Activate the plugin.




Step-2: Linking Google Account

Click Google Drive > Settings > Add Account > Click Google Account You want to Add > Allow necessary permissions.

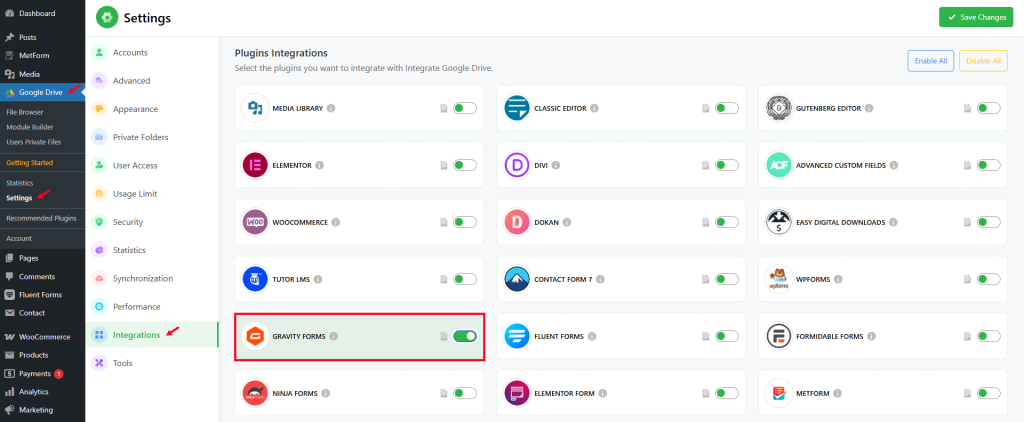

Step-3: Enabling Gravity Forms Integration

Go to Integrate Google Drive Plugin Dashboard > Settings > Integrations > Enable Gravity Forms > click Save Changes from the top right side of the settings page.



Step-4: Creating & Configuring Uploading Field

Now click on Forms from the left sidebar > edit the existing contact form or create a new one.



From Add Field tab click on Integrate Google Drive Fields > click the Google Drive button and finally uploading field will be created on your contact form page. Save the form > copy the shortcode > paste it to your contact page. Now your users are all set to upload files.



From Add Field tab click on Integrate Google Drive Fields > Click the Google Drive button.



Step-5: Select Google Drive Account

Now select a Google Drive folder where you want users to store their uploaded files.  From the Source Tab, select a Google Drive folder where you want users to store their uploaded files. You have more options to customize depending on your needs and expectations.



User Private Folder

Use Private Folder: Turn ON to use the private files and folders linked to the current user. This will allow you to link specific private folders with specific users. Once enabled you will discover an option called Create Private Folder.

  • Create Private Folder: Turn ON to create and link a folder automatically to the user who has not linked any folder yet while the user views the module. Once enabled you will discover the Naming template, Parent Folder, and Template Folder.
    • Naming template: Set the folder name template for the automatically created private folders. Ex: %user_login% reflects as user name used to create the account, %user_email% reflects the email used to create the account.
    • Parent Folder: Select the parent folder where the automatically created private folders will be created.
    • Template Folder: Select the template folder that will be copied to the new private folder.



Form Entry Folders

  • Create Entry Folders: Once enabled folder for each form entry will be created.
  • Name template: Set the form entry folder name template. There are some available template tags for you. Just click your necessary tag to insert. You can also use the form field names to rename the upload folder with the form field values. For example: %entry_id% reflects as entry identity number which is unique each time, %form_id% reflects as the form identity number.
  • Merge Folders: Allow merging folders if a folder with the same name already exists, and upload files into that existing folder instead of creating a new one.



From Filter Tab, you can show/ hide any files or folders by including/ excluding their extensions and names.

  • Allowed Extensions: Enter comma (,) separated file extensions to allow, such as “jpg, png, gif”. Leave empty to upload all extension files. When “Allow all” is enabled, exceptions will not be uploaded.
  • Max File Uploads: Enter the max number of files to upload at once. Leave empty for no limit.
  • Min File Uploads: Enter the minimum number of files to upload. Leave empty for no limit.
  • Max File Size (MB): Enter the maximum upload file size (MB).
  • Min File Size (MB): Enter the minimum upload file size (MB).



From Advanced Tab, you can customize module width and height, upload label text, and maximum/ minimum file sizes, and enable folder upload.

  • Module Container: Set the module container width and height. You can use any valid CSS unit (pixels, percentage), eg ‘360px’, ‘780px’, ‘80%’. Keep blank for the default value.
  • Overwrite Files: Enable to overwrite files with the same name.
  • Enable Folder Upload: Allow users to upload folders. A folder upload button will be added.
  • Enable File Description: Allow users to add a description to the uploaded files.
  • Upload Immediately: Start uploading files immediately after they are selected.
  • File Rename: Rename the uploaded file by adding a suffix or prefix. You can use the available tags to rename the file.
  • Show Upload Label Text: Show/ hide the uploader label text.



From the Notifications Tab, you can control notification-related settings. Ex: Email Notification of user actions.

  • Enable Notifications: Enable email notifications to get notified on various user activities (upload, download, delete, etc).
    • Upload Notification: Receive email notifications whenever someone uploaded files through this module.
  • Notification Recipients: Enter the email address where the notifications will be sent. Add multiple email addresses by separating them with a comma (,). You can also set the below placeholder tags as email recipients.
      • %admin_email% – The email of the site admin.
      • %user_email% – The email of the current user who executes the action.
      • %linked_user_email% – The email of the owner of the private folder.
    • Skip Current User Notification: Enable to skip the notification for the user that executes the action.



Click Done > Save Form.


Step-6: Embed Upload Field Using Shortcode

You can also embed the uploader field using shortcode. Copy the shortcode from Gravity Forms and paste any page or post where you want to display the uploader.



Step-7: Upload Field Output

Here is what the uploading field will look like. Now your users can upload files easily. You will also get an email notification with sufficient links. Make sure to check your email address.
